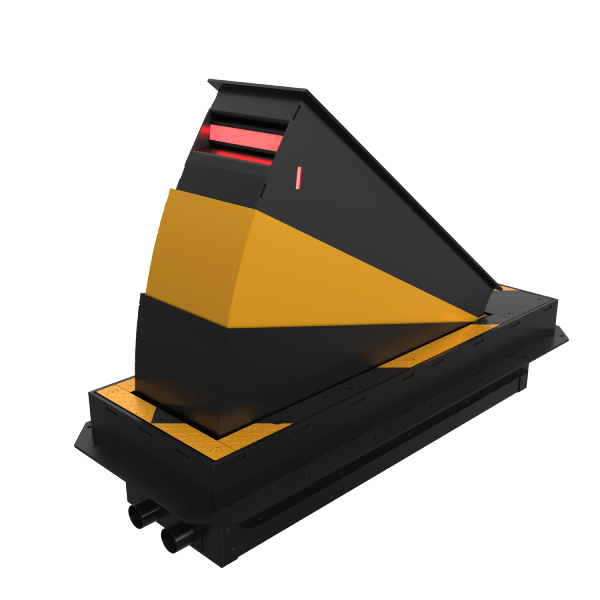

City-light Cyclopes

City-light Cyclopes is an outstanding part of TiSO road blocking systems range of products. This type of equipment intended to organize pedestrian friendly vehicle access control. In contrast to bollards, Cyclope do not require big installation depth. Together with the foundation case, the installation depth may vary from 250 mm to 400 mm, depending on model type. This kind of approach is a good solution to simplify installation and service maintenance procedures. All features in common make Cyclope well applicable solution to the widest range of projects with large scope of requirements.

Product specifications and complete sets may differ from that shown on the photo.

  • Datasheet
  • Drawing
  • Specifications
  • Manual
City-light Cyclope


datasheet of city-light cyclope

Drawing of city-light cyclope
City-light Cyclope (PDF 52,6Kb)
Download
Technical specs:
Model RB319-01
Installation type Shallow mounted
Drive Hydraulic (external/internal)
Blocking width, mm 265
Rising height, mm 600
Installation depth, mm 250
Foundation case dimensions , mm 1140x360x250
Rising speed, sec ~5
Lowering speed, sec ~4
Axle load, t 15
Penetration resistance, kJ 60
Protection level IP 67 for Road blocker
IP 55 for control box
Materials - Structural steel C22(powder coated)
- Stainless steel
Operating temperature*, °C -30/40
Power Supply 1 phase 230 V, 50/60 Hz
Power consumption, kW
- internal hydraulic unit
- external hydraulic unit

0,75
0,33
* for temperatures lower than -10 °c use the heating resistance (optionally)
