M50 High security Cyclope series
TiSO M50 high security Cyclopes ensure the highest level of anti-ramming protection. It was tested and certified according to ASTM F2656/F2656-15 and IWA14-1:2013 standards.
The blocking segment is operated from an external control box with the HPU and PLC. Interconnection between the two elements is provided via the interconnected power and oil hoses.
The equipment has been designed, engineered and extensively tested to maintain high intensity operations. A wide range of optional configurations enables the TiSO high security Cyclopes to be an ideal security solution for a variety of projects under different environment conditions.
This solution greatly simplifies the installation and service maintenance procedures. The combined features make Cyclopes an ideal solution for a multitude of projects.

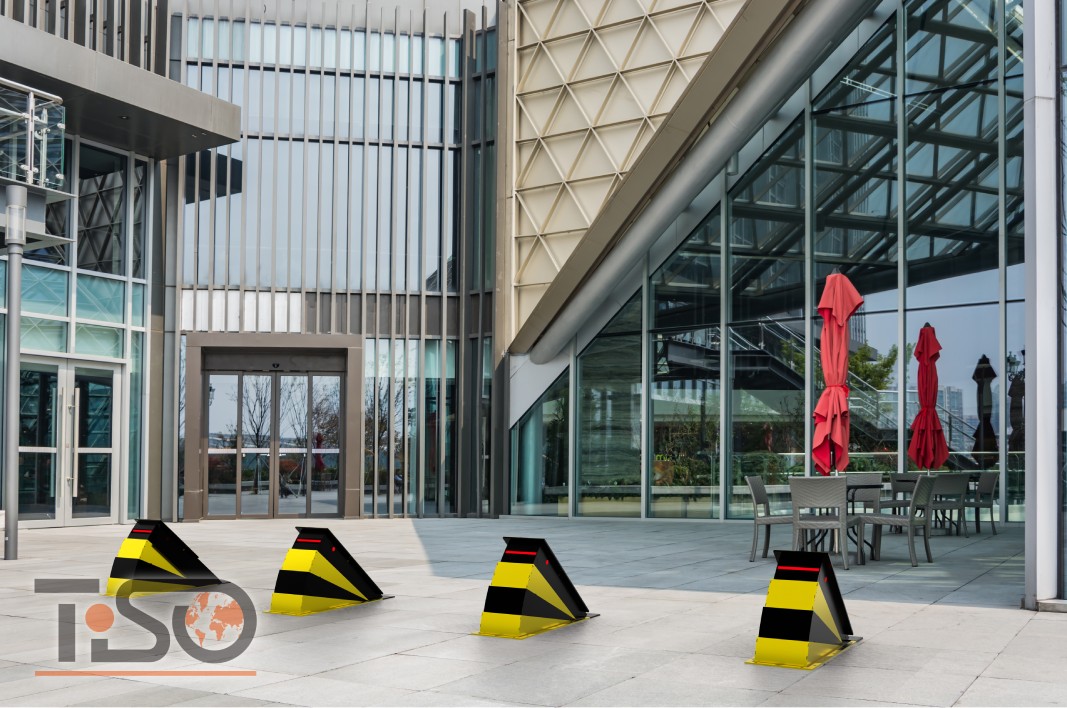

Product specifications and complete sets may differ from that shown on the photo.
- Datasheet
- Drawing
- Specifications
- Manual

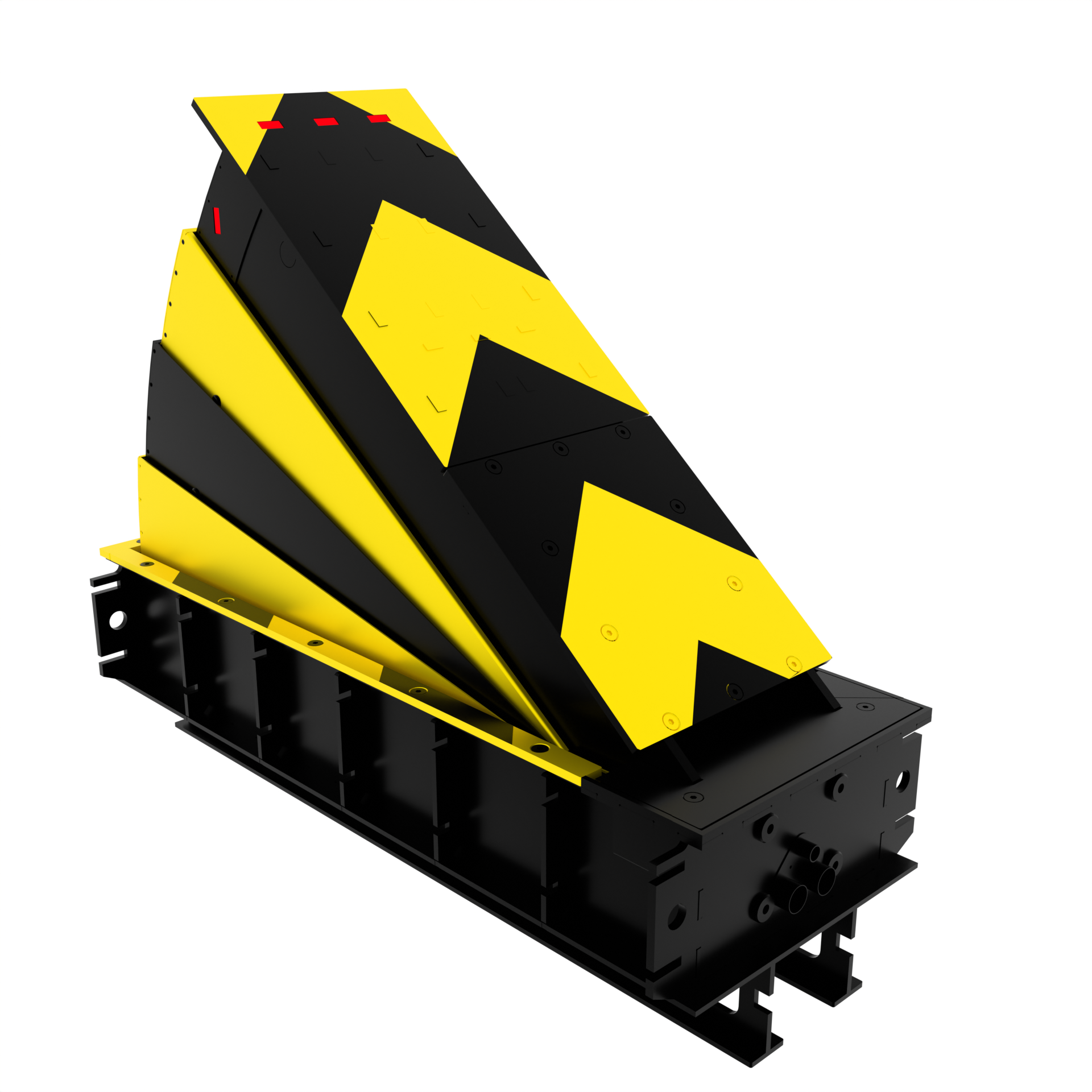

TiSO M50 High security Cyclopes RB320-03  |
| Technical specs: | |
|---|---|
| Model | RB320-03 |
| Security class | Designed to keep ASTM F2656 M50 standard |
| Installation type | Shallow mounted |
| Drive | Hydraulic (HPU) |
| Length, mm | 500 |
| Height, mm | 1100 |
| Foundation case dimensions, mm | 2310x724x600 |
| Impact resistance, kJ | 1680 |
| Axle load, t | 15 |
| Rising time, sec | 6,0 |
| Lowering time, sec | 3,6 |
| Operating temperatures*, °C | -30 / +50 |
| Power supply | 3 phase 400 V, 50/60 Hz |
| Protection level | IP 67 for Road blocker IP 55 for control box |
| Materials | Structural steel C22 (powder coated) |
| * for temperatures lower than -10 °C use the heating device / for temperatures higher than +40 °C use the cooler device | |
