PAS68/IWA14-1 (7,5t@80kph) Ultra shallow road blocker
Ultra shallow road blockers were designed to protect the perimeter. This road blocker can stop truck of 7 500 kg (7,5 t) mass driving at 80 kph (50 mph) speed. This is confirmed by successfully passed tests BSI PAS 68:2013 and IWA 14-1:2013. Such road blocker fully meets the requirements for the protection of highly classified objects.
Being 950 mm height ultra shallow mounted road blocker (7,5t@80kph) has mounting depth of 200 mm. The completely innovative design of this lock allows you to combine its main anti-ram function with the simplicity and high speed of installation.

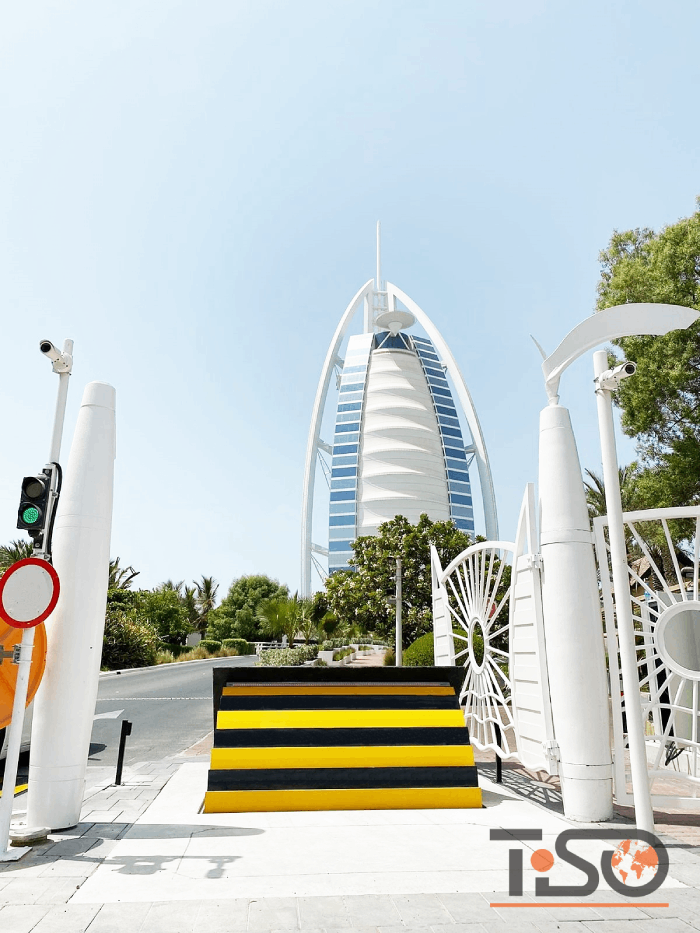

Product specifications and complete sets may differ from that shown on the photo.
- Datasheet/Brochure
- Specifications
- Drawings
- Manual
- Gallery
- Video
- Certificate
Datasheet of TiSO Ultra shallow road blockers RB332-01, RB333-01, RB334-01 (PDF 2,16Mb)
Brochure of TiSO Ultra shallow road blockers RB332-01, RB333-01, RB334-01 (PDF 2,3Mb)
Model | RB332-01 | RB333-01 | RB334-01 |
Security class | BSI PAS68:2013 and IWA14-1:2013 (7,5t@80kph) | ||
Installation type | Submersible | ||
Drive | Hydraulic / External | ||
Blocking width, mm | 2000 | 3000 | 4000 |
Height, mm | 950 (± 20 mm) | ||
Dimensions*, mm LxWxH |
1690x2170x200 |
1690x3170x200 |
1690x4170x200 |
Power consumption. kW | 4 - 7,5 (depending on power hoses length) | ||
Rising time, s | 3,5 (± 1s) / with EFO - 1,5s | ||
Lowering time, s | 3,5 (± 1s) | ||
Installation depth, mm | 200 | ||
Maximum axle weight limit,** t | 15 t (by default), 30 t - 50 t (optional)** | ||
Penetration resistance, kJ | 1 868 | ||
Power supply | 3 phases 400 V, 50/60 Hz (standard) 1 phase 230 V, 50/60 Hz (option) |
||
Protection level for road blocker | IP 67 | ||
Protection level for control cabinet | IP 54 (by default), IP 65 (optional) | ||
Temperature range, °C | -10 / +40 | ||
Temperature range *** (option), °C | -40 / +65 | ||
Material | Structural steel C22 | ||
Coating | Epoxy Polyurethane RAL 9005 Black / RAL 1003 Yellow |
||
* Technical features can be changed without prior notice. ** Drawings of foundation for 30 and 50 tons axle load to be provided upon request. *** For temperatures below -10 °C heating system to be used |
TiSO Ultra shallow road blockers RB332-01, RB333-01, RB334-01 with safety skirt (PDF 2,01Mb)
TiSO Ultra shallow road blockers RB312-01, RB313-01, RB314-01 without safety skirt (PDF 2,06Mb)
