M30 High security Cyclope series

TiSO M30 high security Cyclopes ensure the highest level of anti-ramming protection. It was tested and certified according to ASTM F2656/F2656-15 and IWA14-1:2013 standards.
The blocking segment is operated from an external control box with the HPU and PLC. Interconnection between the two elements is provided via the interconnected power and oil hoses.
The equipment has been designed, engineered and extensively tested to maintain high intensity operations. A wide range of optional configurations enables the TiSO high security Cyclopes to be an ideal security solution for a variety of projects under different environment conditions.
This solution greatly simplifies the installation and service maintenance procedures. The combined features make Cyclopes an ideal solution for a multitude of projects.

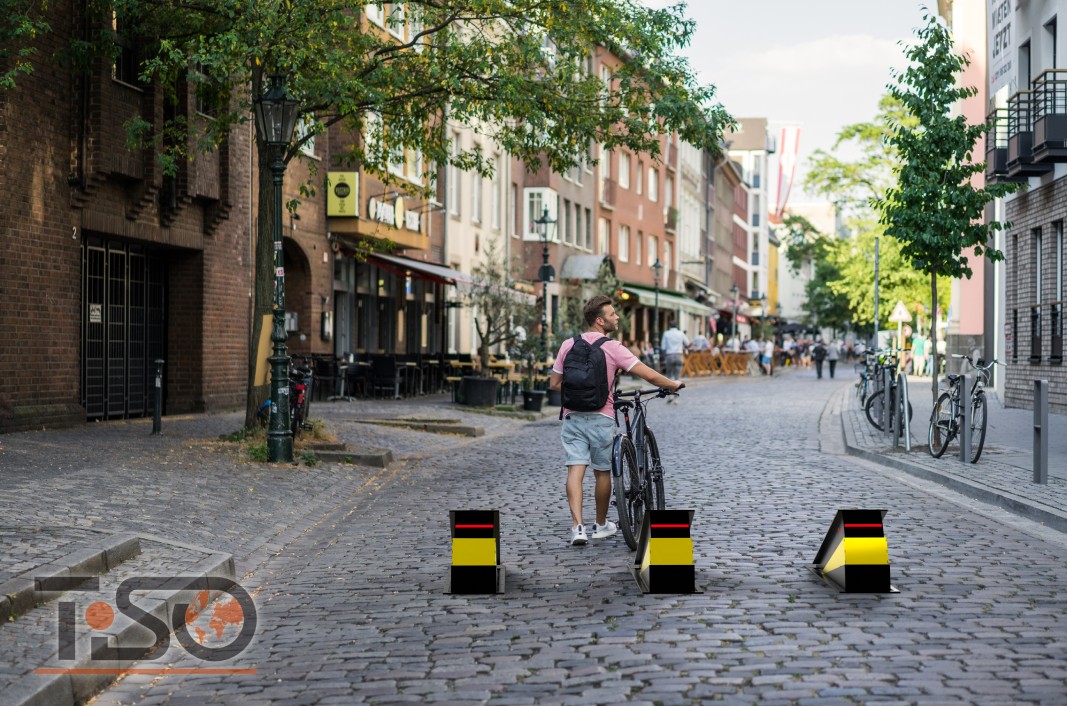

Product specifications and complete sets may differ from that shown on the photo.

  • Datasheet
  • Specifications
  • Drawing
  • Manual

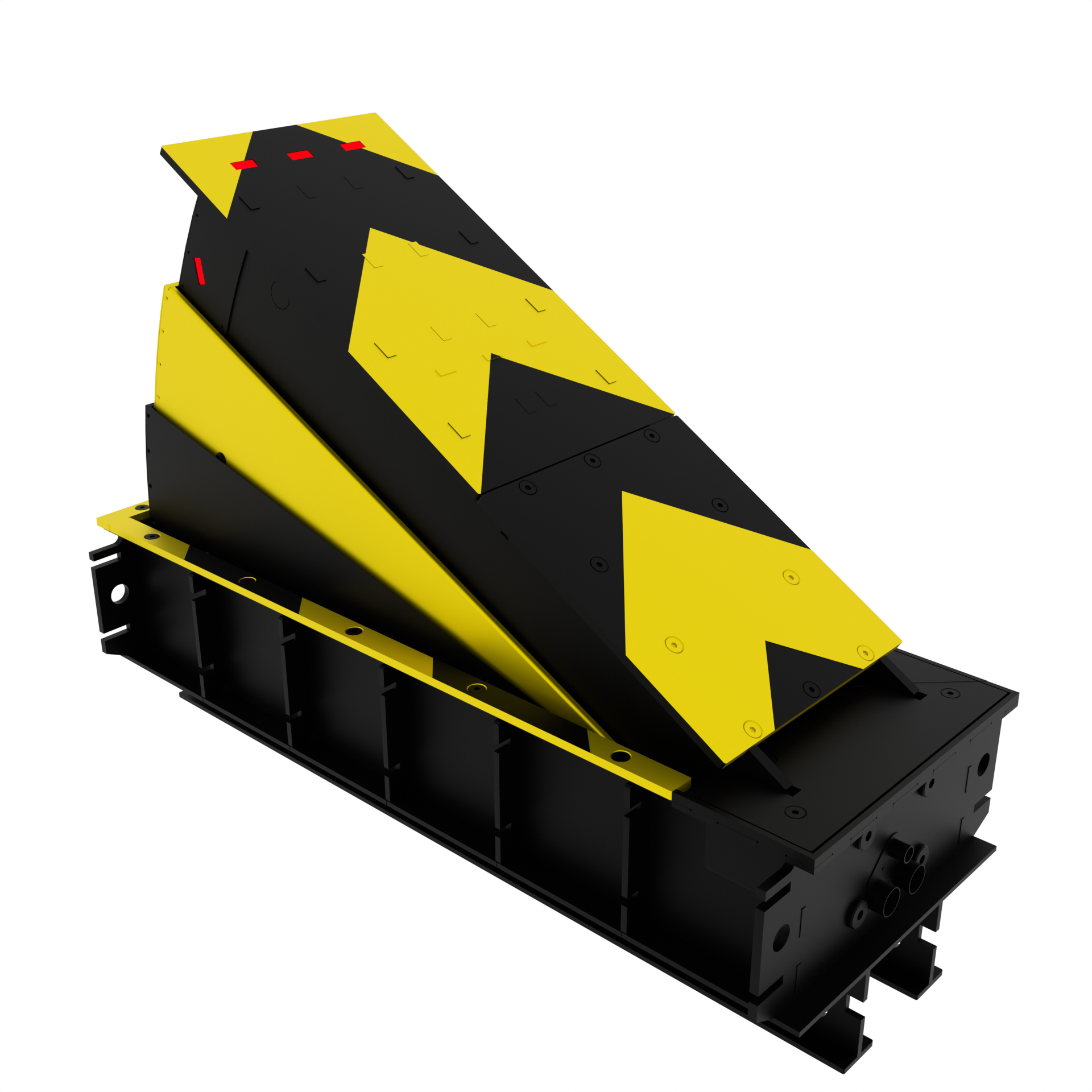

High security cyclope
TiSO M30 High security Cyclopes RB320-01

datasheet of high security cyclope (RB320-01)
Model RB320-01
Security class Designed to keep ASTM F2656 M30 standard
Installation type Shallow mounted
Drive Hydraulic
Length, mm 500
Height, mm 800
Foundation case dimensions, mm 1710x724x400
Penetration resistance, kJ 1181 kJ
Axle load, t 15
Rising time, s 5,5
Lowering time, s 3,3
Operating temperatures*, °C -30 / +50
Power supply 3 phase 400V, 50/60 Hz
Protection level IP 67 for Road blocker
IP 55 for control box
Materials Structural steel C22 (powder coated)
* for temperatures lower than -10 °C use the heating device / for temperatures higher than +40 °C use the cooler device
