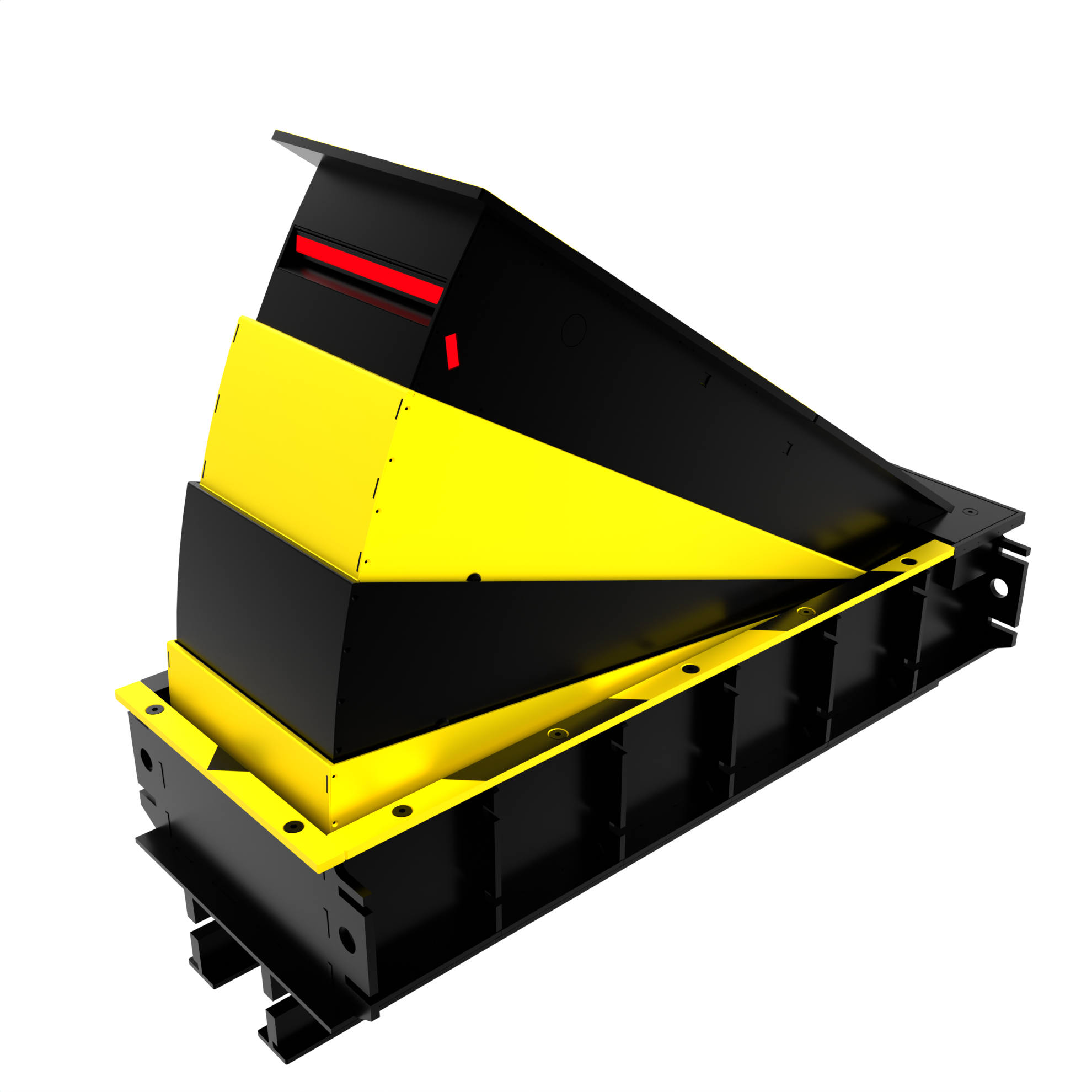

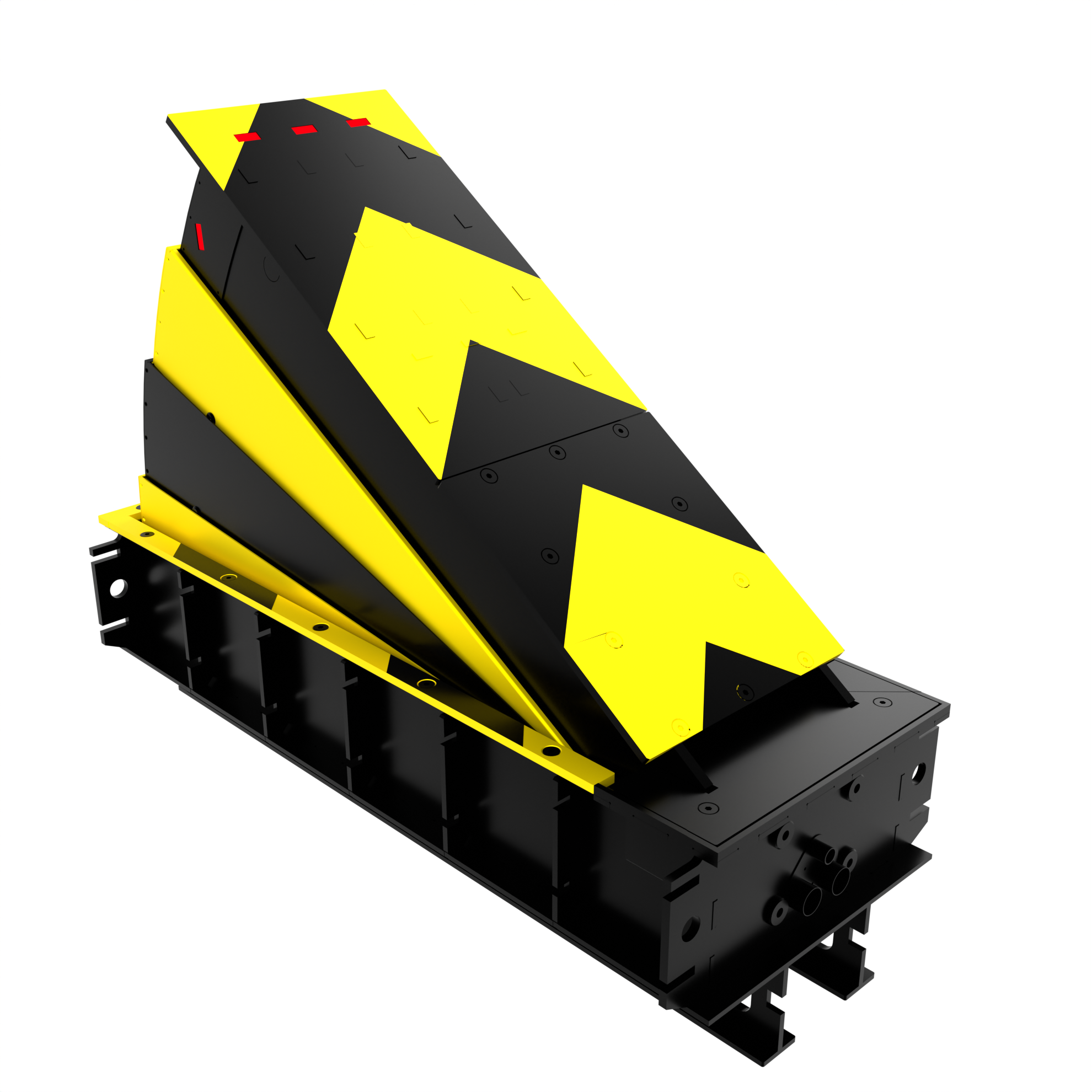

M40 High security Cyclope series

TiSO M40 high security Cyclopes ensure the highest level of anti-ramming protection. It was tested and certified according to ASTM F2656/F2656-15 and IWA14-1:2013 standards.
The blocking segment is operated from an external control box with the HPU and PLC. Interconnection between the two elements is provided via the interconnected power and oil hoses.
The equipment has been designed, engineered and extensively tested to maintain high intensity operations. A wide range of optional configurations enables the TiSO high security Cyclopes to be an ideal security solution for a variety of projects under different environment conditions.
This solution greatly simplifies the installation and service maintenance procedures. The combined features make Cyclopes an ideal solution for a multitude of projects.

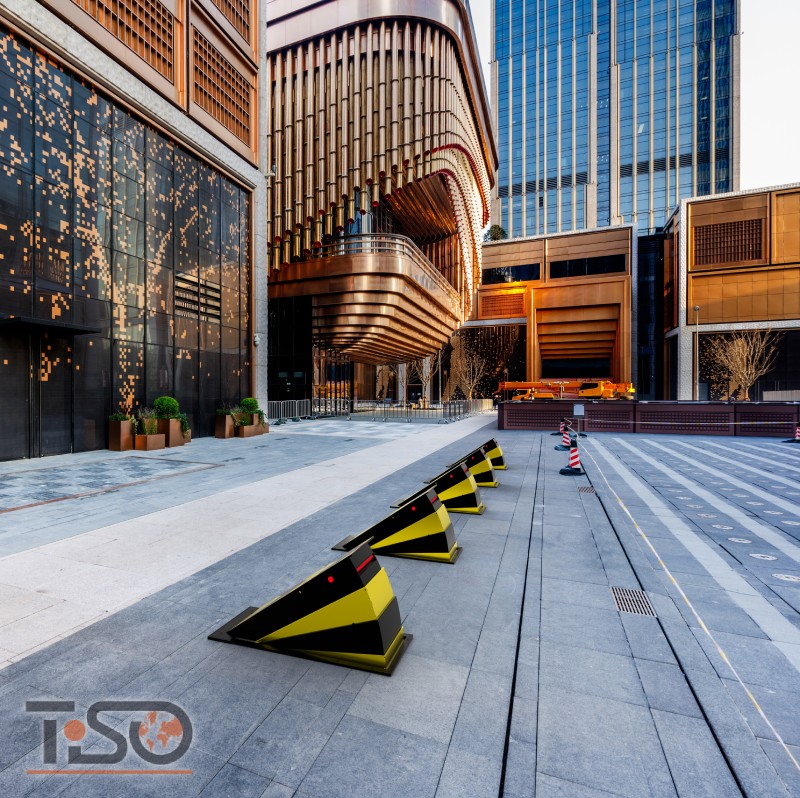

Product specifications and complete sets may differ from that shown on the photo.

  • Datasheet
  • Drawings
  • Certificate
  • Bim objects
  • Specifications
  • Gallery
  • Video
  • Manual
M40 High security cyclope
TiSO M40 High security Cyclopes RB320-02

datasheet of high security cyclope (rb320-02)

TiSO M40 High security Cyclopes RB320-02 (PDF 1,54Mb)

Login to get TiSO M40 High security Cyclopes .dwg drawing

Login to get M40 High security Cyclope BIM objects

Model RB320-02
Security class ASTM F2656/F2656 M-15, C740, P1(-1.7m)
IWA 14-1:2013 Blocker V/7200 [N2B]/64/90:-0,2
Installation type Shallow mounted
Drive Hydraulic
Length, mm 500
Height, mm 900
Foundation case dimensions, mm 1910x724x500
Impact resistance, kJ 1110
Axle load, t 15
Rising time, s 5,6
Lowering time, s 3,4
Operating temperatures*, °C -30 / +50
Power supply 3 phase 400 V, 50/60 Hz
Protection level IP 67 for Road blocker
IP 55 for control box
Materials Structural steel C22 (powder coated)
* for temperatures lower than -10 °C use the heating device / for temperatures higher than +40 °C use the cooler device
